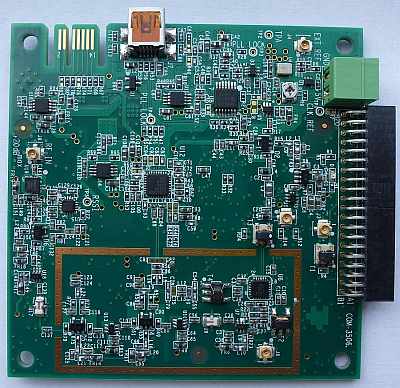

[400MHz - 3GHz] Customizable Transceiver
[400MHz - 3GHz] Transceiver
KEY FEATURES
  • Full or half-duplex transceiver, 400 MHz - 3 GHz
    • Independently tunable center frequency for transmit/receive
    • Custom frequency bands at no extra charge
  • RF input level: -90 dBm to -10 dBm. 2 dB noise figure
  • RF output level: +5 dBm max
  • Receiver bandwidth: 28 MHz. Other bandwidths available upon request
  • Low phase noise (<-90 dBc at 1 KHz offset, 2 GHz) consistent with low data rate applications
  • Internal 2.5ppm TCXO frequency reference (before calibration), or external 10 MHz frequency reference
  • Half-duplex Tx/Rx switch time < 3s
  • Baseband interface: differential analog signal
  • RF interfaces: 50 Ohm UMCC connectors for tx output, rx input, external 10 MHz frequency reference
  • USB, SPI or LVTTL UART port for monitoring and control
  • Only single +5VDC supply required. Connectorized 3x 3 module for ease of prototyping

ComBlock COMPATIBILITY LIST
Analog Baseband Interface
COM-1700 Low-power compact development platform FPGA+ARM+DACs+ADCs+VGA+GbE LAN+USB2+NAND+TCXO+RS422
COM-1705 Low-power compact PSK modem + Viterbi Convolutional FEC + IP router
COM-3504 Dual Digital<->Analog conversions
RF Interface
COM-4103L/S-band 10W Power Amplifier + LNA



COM-3506
Other RF front-end modules
Documentation
Specifications
Schematics
$395 Purchase Online
