BPSK/QPSK/OQPSK Modulator
KEY FEATURES
  • Note: The newer COM-1402 now provides higher performance (22 MSymbols/s, 90MSamples/s) and extended functionality (more modulation schemes, ComScope, etc.)

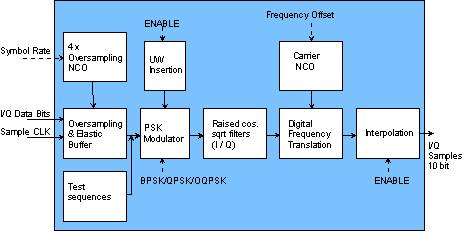

  • BPSK/QPSK/OQPSK modulator
  • Programmable data rates up to 20 Mbps (QPSK) and 10 Mbps (BPSK) by steps of at most 3bps
  • Includes raised cosine square root filter with 20%, 25%, or 40% rolloff options
  • Differential and non-differential encoding
  • Synchronization sequence (unique word) insertion to facilitate demodulator acquisition
  • Internal generation of pseudo-random bit stream and unmodulated carrier for test purposes
  • Built-in channel impairments generation:
    • frequency offset (Doppler)
  • On-board or external clock selection
  • Single 5V supply
  • Connectorized 3”x 3” module for ease of prototyping. Standard 40 pin 2mm dual row connectors (left, right, bottom). Interfaces with 5V and 3.3V logic

  • ComScope–enabled: key internal signals can be captured in real-time and displayed on a host computer

    ComBlock COMPATIBILITY LIST

    Input Output
    COM-1010 Convolutional encoder COM-2001 Digital to Analog conversion, baseband
    COM-7003 Turbo Code Error Correction COM-4004 70 MHz IF modulator
    COM-8001 Pattern generator 256MB COM-1001 BPSK/QPSK/OQPSK demodulator, digital back-to-back
    COM-8004 Signal Diversity Splitter COM-1023 BER generator, white gaussian noise generator
    COM-5003 TCP-IP / USB Gateway COM-1024 Multipath simulator



    COM-1002
    Specifications
    (170 KB)
    VHDL Source Code / IP Overview
    Support & Download
    Latest model (COM-1402)
